Ant Esports Elite 1100 Mid Tower ATX* , M-ATX, ITX Black Cabinet 4x120mm Fans
Ant Esports Elite 1100 Mid Tower ATX* , M-ATX, ITX Black Cabinet 4x120mm Static RGB Fans

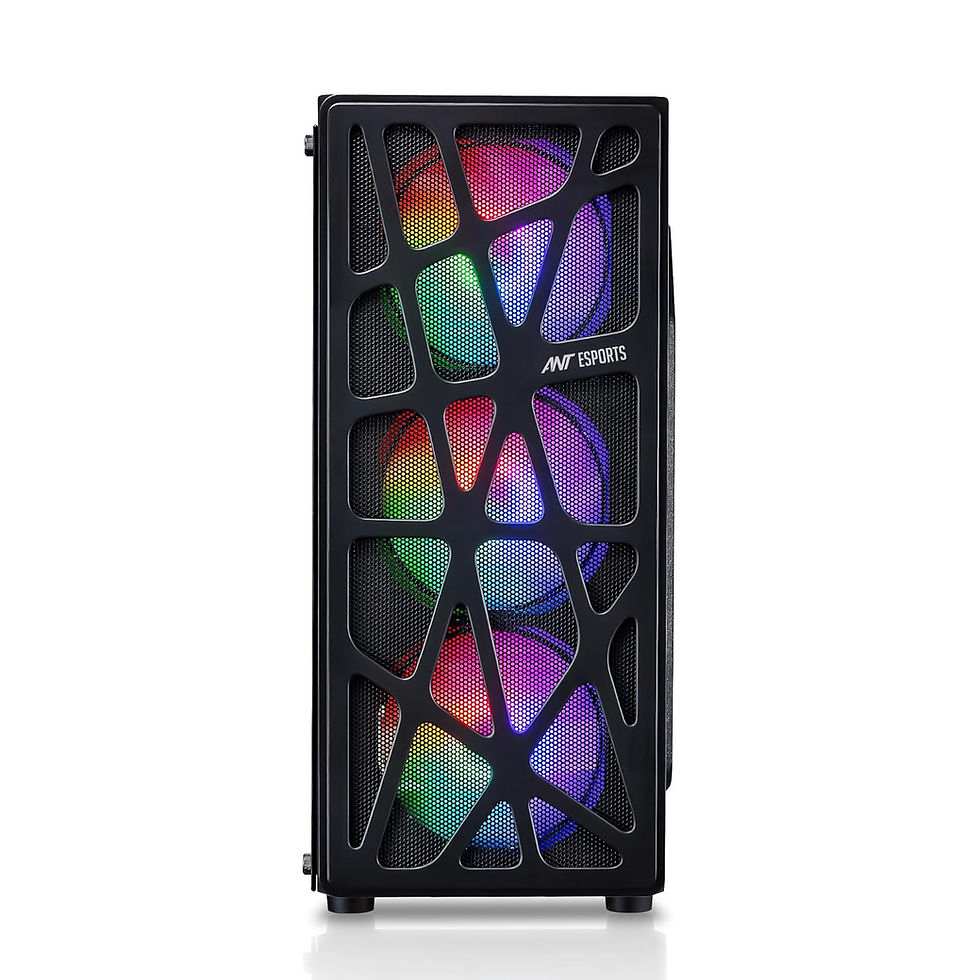

High Airflow Mesh Design – The front panel features a uniquely designed mesh structure that ensures maximum airflow while maintaining a striking aesthetic appeal.
Efficient Cooling Setup – Comes pre-installed with three RGB front fans and one rear fan, with support for up to 280mm front and 120mm rear liquid cooling, ensuring optimal thermal performance.

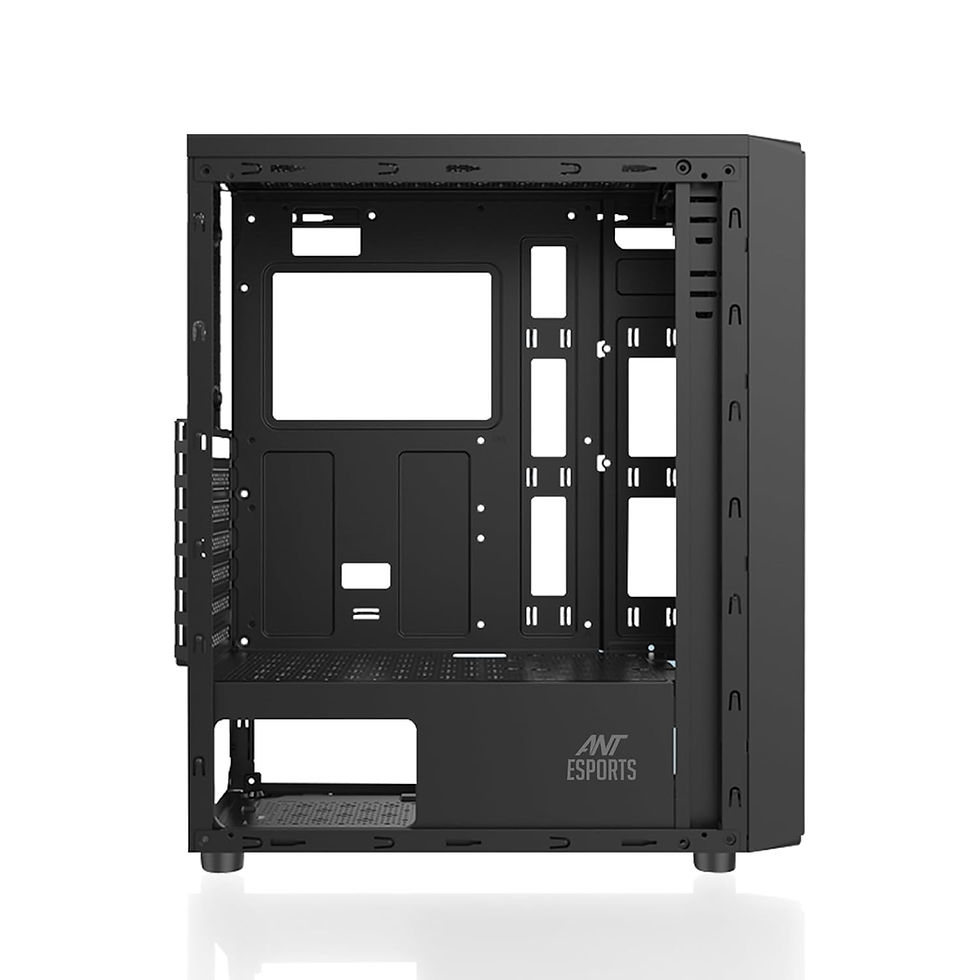

Compact Yet Versatile Build – Supports ATX, Micro-ATX, and Mini-ITX motherboards while offering ample space for high-performance components.
Enhanced Compatibility – Accommodates GPUs up to 300mm in length and CPU coolers up to 160mm in height, perfect for powerful gaming configurations.
Convenient Front I/O Panel – Features USB 3.0, dual USB 2.0, HD Audio, and Mic ports for easy connectivity and accessibility.
Tempered Glass Side Panel – Showcase your RGB setup and components in style with a clear, durable tempered glass panel.
General
Feature Details Model No. PH-EC370A_DBK01 UPC Code 886523303930 Form Factor Mid-Tower Color Black Materials Steel Chassis, Tempered Glass Window, ABS Plastic Expansion Slots 7 Vertical GPU Support No Warranty 2 Years Limited Dimensions & Weight
Feature Details Case Dimensions 465 × 476 × 220 mm (18.30 × 18.74 × 8.66 in) Net Weight 6.43 kg (14.17 lbs) Gross Weight 7.72 kg (17.02 lbs) Motherboard Compatibility
Supported Mainboards SSI-EEB E-ATX ATX Micro-ATX Mini-ITX Drive Support
Drive Type Supported Internal 2.5″ Bays 2 × 2.5″ SSD Internal 3.5″ Bays 1 × 3.5″ HDD Combo Support +1× 3.5″ HDD / +2× 2.5″ SSD Front I/O Ports
Port Type Quantity USB 3.0 1 USB-C 3.0 1 Audio Microphone & Headphone Combo Buttons Power Button, Reset Button Cooling – Fan Support (120 mm | 140 mm)
Location Max Fans Top 3 Front 3 Rear 1 Bottom – Total Fans Supported 7 Cooling – Radiator Support
Location Radiator Support Top Up to 360 mm Front Up to 240 mm Rear – Bottom – Clearance
Component Maximum Clearance CPU Cooler Height 170 mm (6.69 in) GPU Length 375 mm (14.76 in) – with front fans GPU Width 170 mm (6.69 in) Power Supply Length 200 mm (7.87 in) Radiator Clearance (Top – 360 mm)
Dimension Size Length × Width × Height 400 × 120 × 60 mm (15.74 × 4.72 × 2.36 in) Scope of Delivery
Included Items Eclipse G370A Chassis Pre-installed SSD Bracket Accessory Box
Accessories 6 × Zip Ties 1 × Stand-off Removal Tool Screws Included
Screw Type Quantity Mainboard / SSD Screws 18 PSU / Chassis Screws 13 HDD Screws 4 HDD Standoffs 4 HDD Rubber Dampeners 4 Mainboard Stand-off 1
