Gigabyte B860 EAGLE WIFI6E
₹29,000.00 नियमित मूल्य
₹21,399.00बिक्री मूल्य
स्टाक खत्म
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E

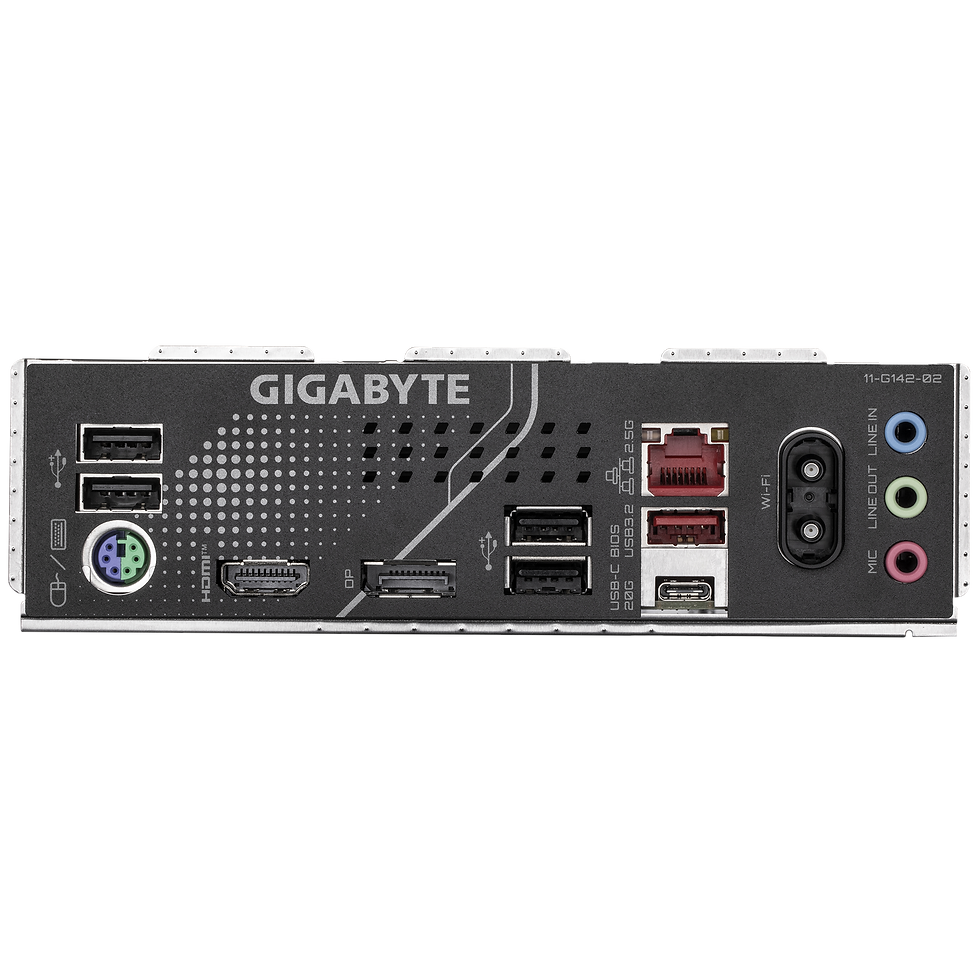

- Extended Connectivity : HDMI, DisplayPort
Category Details CPU LGA1851 socket, supports Intel® Core™ Ultra Processors (see CPU support list).L3 cache varies with CPU Chipset Intel® B860 Express Chipset Memory DDR5 9066(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s4 × DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM)Dual channel architectureECC UDIMM 1Rx8/2Rx8 (non-ECC mode)Non-ECC UDIMM 1Rx8/2Rx8/1Rx16XMP support Onboard Graphics Intel® HD Graphics (depends on CPU)• 1 × HDMI 2.1 port, max 4096×2160@60 Hz, HDCP 2.3• 1 × DisplayPort 2.1, max 3840×2160@144 Hz Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel (configurable via software)S/PDIF Out supported LAN Realtek® 2.5GbE LAN chip (2.5/1/0.1 Gbps) Wireless PCB Rev.1.0 → Intel® Wi-Fi 6E AX211 + Bluetooth® 5.3PCB Rev.1.1 → Realtek® Wi-Fi 6E RTL8852CE + Bluetooth® 5.3Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz, 160 MHz Expansion Slots CPU: 1 × PCIe 5.0 x16 slot (for GPU or NVMe SSD)Chipset: 2 × PCIe 4.0 x16 slots (running at x1 each) Storage CPU: 1 × M.2 PCIe 5.0 x4/x2 (25110/22110/2580/2280)Chipset: 2 × M.2 PCIe 4.0 x4/x2 (25110/22110/2580/2280)4 × SATA 6Gb/s portsRAID 0/1/5/10 support USB Rear I/O:• 1 × USB-C 3.2 Gen 2x2• 1 × USB 3.2 Gen 2 Type-A (red)• 4 × USB 2.0/1.1Internal:• 1 × USB-C 3.2 Gen 1 header• 1 × USB 3.2 Gen 1 header (2 ports)• 2 × USB 2.0 headers (4 ports) Internal I/O 24-pin ATX, 8-pin 12V1 × CPU fan, 1 × CPU fan/pump2 × system fan, 2 × system fan/pump3 × ARGB Gen2 headers, 1 × RGB header3 × M.2 sockets, 4 × SATAFront panel, audio, S/PDIF OutUSB-C 3.2 Gen 1, USB 3.2 Gen 1, USB 2.0TPM header, serial portQ-Flash Plus button, reset jumper, Clear CMOS jumper Back Panel 1 × PS/2 combo1 × HDMI1 × DisplayPort1 × USB-C 3.2 Gen 2x21 × USB 3.2 Gen 2 Type-A (red)4 × USB 2.02 × Wi-Fi antenna connectors1 × RJ-45 LAN3 × audio jacks I/O Controller iTE® I/O Controller Chip Monitoring Voltage, temperature, fan speed, water flowFan fail warning & speed control BIOS 256 Mbit flash, AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 Unique Features GIGABYTE Control Center (GCC)Q-Flash, Q-Flash Plus, Smart Backup Bundled Software Norton® Internet Security (OEM), LAN bandwidth mgmt. OS Support Windows 11 64-bit (with Intel® NPU driver)Windows 10 64-bit Form Factor ATX, 30.5 × 24.4 cm
