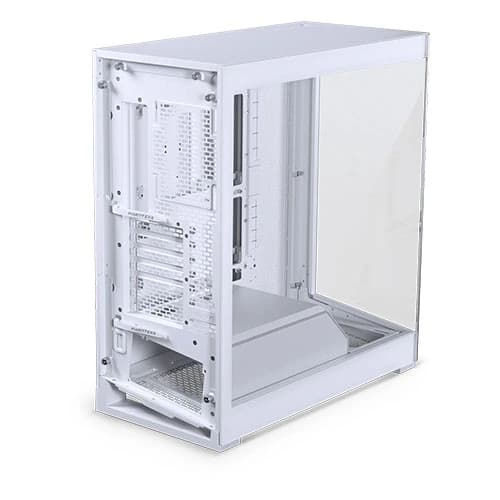

PHANTEKS NV5 MKII -White
NV5 MKII
Performance with a view
Meet the NV5 MKII mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. Supporting rear-side connector mainboards (BTF & Project Zero), with a dedicated bottom fan for enhanced GPU cooling and a spacious interior to accommodate modern GPUs and cables, the NV5 MKII is designed to excel.
Its PSU cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 MKII is the perfect choice for a high-performance PC build that looks as good as it performs.
Tech Specs
🧰 Specifications Table – PH-NV523TG_DBK02
General
Item Details Model No. PH-NV523TG_DBK02 UPC Code 886523303466 Case Dimensions 239 x 477 x 528 mm (9.4 x 18.8 x 20.8 in) Form Factor Mid-Tower Motherboard Support E-ATX* (up to 280mm without GPU Bracket), ATX, Micro-ATX, Mini-ITX Materials Steel chassis, Tempered glass Side Window Yes PCI Slots 7 Vertical GPU Support 3-slots (Riser cable sold separately) Drive Bays
Type Quantity 2.5″ SSD Bays 4 3.5″ HDD Bays 3 Front I/O Ports
Port Quantity USB-C 3.2 Gen2 1 USB 3.0 2 Microphone / Headphone 1 Power / D-RGB Mode / Color Btn Yes Cooling – Fan Support
Position 120mm Fans 140mm Fans Top 3 – Front – – Side 3 – Rear 1 – Bottom 1 – Total 8 – Cooling – Radiator Support
Position Radiator Size Top Up to 360mm Side Up to 360mm Rear 120mm Front – Bottom – Component Clearance
Component Clearance CPU Cooler 180 mm (7.08 in) GPU Length 440 mm (17.32 in) GPU Height 170 mm (6.69 in) PSU Length 230 mm (9.05 in) Radiator Clearance Dimensions
Location Size (L x W x H) Top 134 x 430 x 62 mm (5.27 x 16.92 x 2.44 in) Side 130 x 420 x 62 mm (5.11 x 16.53 x 2.44 in) Rear 132 x 170 mm (5.19 x 6.69 in) Weight
Type Value Net Weight 11.28 kg (24.9 lbs) Gross Weight 13.97 kg (30.8 lbs) Warranty & Accessories
Item Included Warranty 5 Years Limited GPU Support Bracket Yes Zip Ties 6 Included Screws MB/SSD (22), PSU (4), Thumb (4), Case (12) Other Accessories MB stand-off + removal tool
