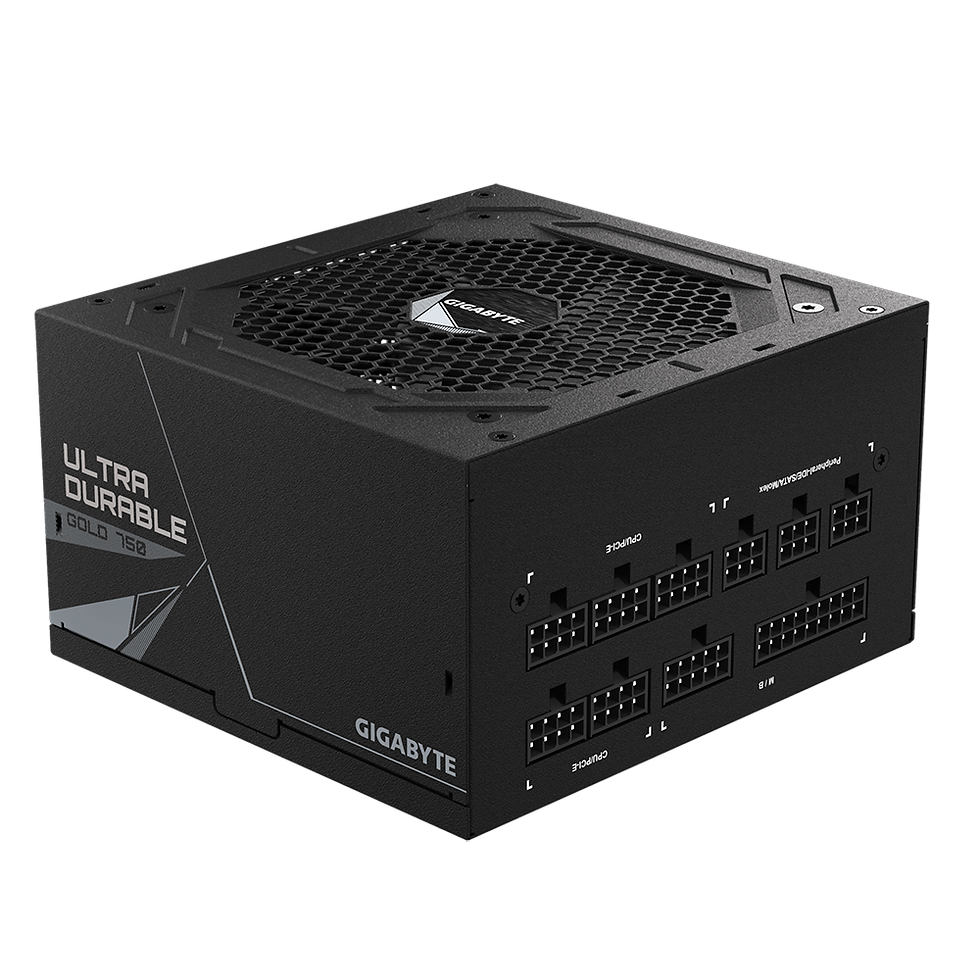

GIGABYTE UD750GM PG5 SMPS
₹17,000.00 Regular Price
₹9,120.00Sale Price
- Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact design
- 5 years warranty (Adjusted according to different regions)
Tech Specs
Specification Details Model GP‑UD750GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100–240 Vac (full range) Input Current 12–6 A Input Frequency 60–50 Hz Output Capacity 750W Dimensions (W x L x H) 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing (HYB) fan 80 PLUS Certification Gold Efficiency 90% at typical load MTBF >100,000 hours Protections OVP / OPP / SCP / UVP / OCP / OTP Power Good Signal 100–150 ms Hold Up Time >16 ms Cable Type Flat, all black Connectors ATX/MB 20+4 Pin 1 × 610 mm CPU/EPS 4+4 Pin 2 × 600 mm PCI‑e 6+2 Pin 2 × (600 mm + 150 mm) SATA 2 × (600 mm + 150 mm + 150 mm + 150 mm) 4 Pin Peripheral x3 + Floppy x1 1 × (500 mm + 120 mm + 120 mm + 150 mm)
