Gigabyte B650 GAMING X AX V2 (rev. 1.x)
₹31,500.00 Regular Price
₹17,999.00Sale Price
Out of Stock
B650 GAMING X AX V2
- AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance：Direct 8+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

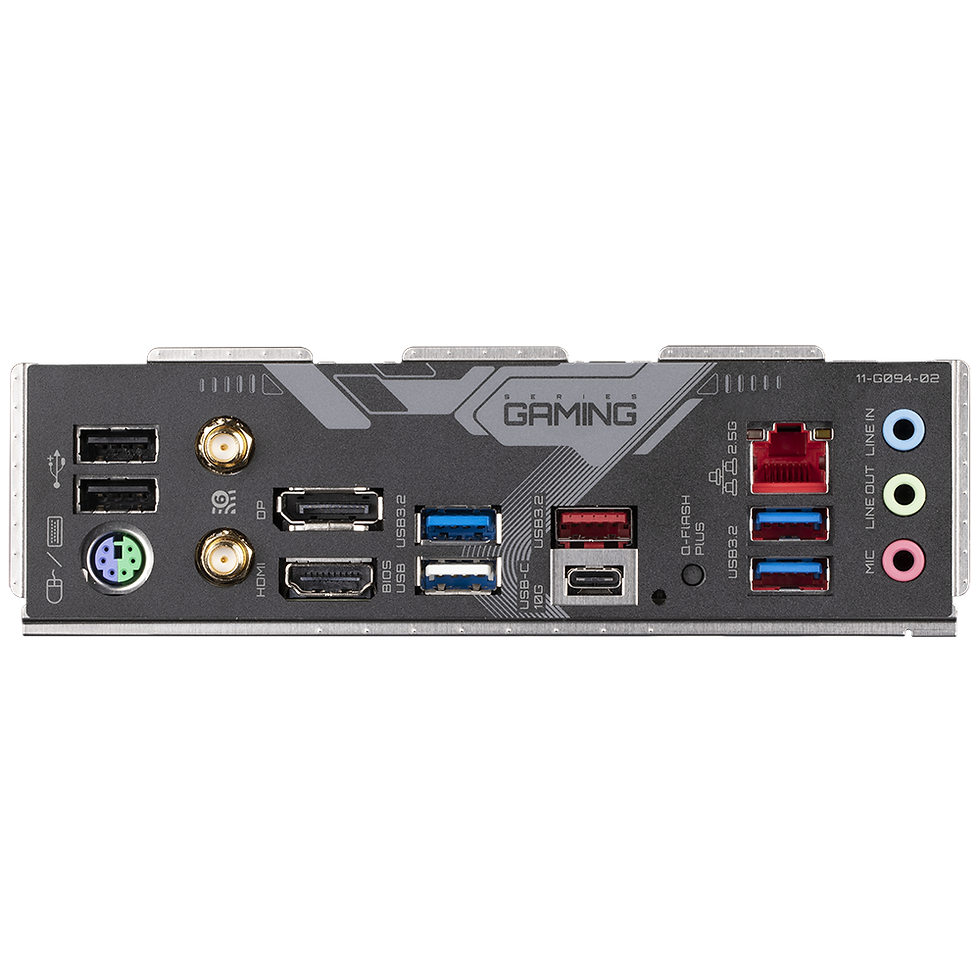

- Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Category Details CPU AMD Socket AM5, supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors (Refer to CPU Support List) Chipset AMD B650 Memory - DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s - 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) - Dual Channel - Supports non-ECC un-buffered DIMM 1Rx8/2Rx8/1Rx16 - Supports AMD EXPO™ & XMP Onboard Graphics - Integrated AMD Radeon™ Graphics - 1 x DisplayPort 1.4 (3840x2160@144 Hz, HDR) - 1 x HDMI 2.1 (4096x2160@60 Hz, HDCP 2.3) Audio - Realtek® Audio CODEC - HD Audio, 2/4/5.1/7.1-channel - Configurable via audio software LAN Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) Wireless (varies by PCB revision) - Rev. 1.0: Realtek® Wi-Fi 6E RTL8852CE, BT 5.3 - Rev. 1.1: AMD Wi-Fi 6E RZ616, BT 5.2 - Rev. 1.2: Intel® Wi-Fi 6E AX210, BT 5.3 Supports Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz, 160 MHz channels Expansion Slots - 1 x PCIe x16 (CPU) • Ryzen 7000/9000: PCIe 4.0 x16 • Ryzen 8000 Phoenix 1: PCIe 4.0 x8 • Ryzen 8000 Phoenix 2: PCIe 4.0 x4 - 2 x PCIe 3.0 x1 (Chipset) Storage - M.2 (M2A_CPU): PCIe 5.0 x4/x2 (Ryzen 7000/9000), PCIe 4.0 x4/x2 (Ryzen 8000) - M.2 (M2B_CPU): PCIe 4.0 x4/x2 (Ryzen 7000/9000), PCIe 4.0 x4/x2/x2 (Ryzen 8000) - M.2 (M2C_SB): PCIe 4.0 x4/x2 - 4 x SATA 6Gb/s - RAID 0/1/10 (NVMe & SATA) USB CPU: - 1 x USB Type-C® (USB 3.2 Gen 2, back panel) - 1 x USB 3.2 Gen 2 Type-A (red, back panel) - 1 x USB 3.2 Gen 1 (back panel) - 3 x USB 2.0 (back panel) Chipset: - 1 x USB Type-C® (USB 3.2 Gen 2x2, internal) - 4 x USB 3.2 Gen 1 (2 back, 2 internal) - 4 x USB 2.0 (internal) Internal I/O - 24-pin ATX, 8-pin + 4-pin ATX 12V - CPU fan, CPU fan/pump, 2 system fans, 1 system fan/pump - 2 x ARGB headers, 2 x RGB headers, 1 x CPU cooler LED header - 3 x M.2 slots - 4 x SATA 6Gb/s -
