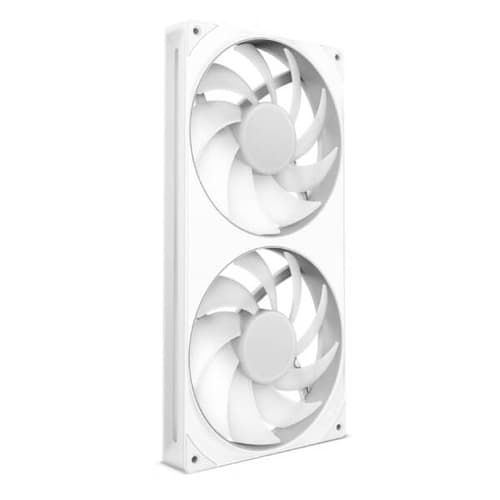

Nzxt F280 RGB Core Single Frame Cabinet Fan (White)
NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.
- Single-frame unit with integrated fans streamlines installation, setup, and lighting control—no need to connect individual fans.
- Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.
- Fan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaust.
- Fluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespan.
- Eight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colorful visuals.
- PWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noise.
- Anti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speed.
- Control lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately).
Versatile Connectivity
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.
Optimal Performance
Blade design boosts static pressure to push air through tight spaces with superior airflow.
Fluid Dynamic Bearings
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.
Radiant RGB Lighting
8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.
PWM Control
Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.
*Requires PWM connection to motherboard or controller (sold separately)
Silent Operation
Anti-vibration rubber corners dampen noise and Zero RPM Mode* shuts fans off during light loads.
*Requires an NZXT controller or NZXT motherboard, each sold separately
Tech Specs
Model F280 RGB Core Color White P/N RF-U28HF-W1 Dimensions Height 280 mm Width 140 mm Depth 26 mm Fans Speed 500 - 2,000 ± 200 RPM per fan Airflow 98.61 CFM per fan Static Pressure 3.2 mm H₂O per fan Noise 34.5 dBA per fan Power Consumption 12V DC, 0.59A, 7.08W / 5V DC, 0.45A, 2.25W Bearing Fluid Dynamic Bearing Output LED 8 LEDs per Fan Connector 8-pin for PWM & RGB Cable Length 1 x 600 mm Material Plastic, Rubber, PCB Life 60,000 Hours Cable Splitter Cable Connections & Cable Length 4-pin PWM Fan Cable (1 x 300 mm) 5V RGB & 4-pin NZXT RGB Cable (1 x 100 mm) Warranty 5 Years
